E Ride Pro CNC Bash Guard Skid Plate

E Ride Pro Bash Guard / Skid Plate – CNC Motor & Controller Protection

Upgrade your E Ride Pro with a CNC aluminum bash guard and skid plate designed to protect the motor, controller, and lower frame area from rocks, impacts, and hard off-road riding. Built for E Ride Pro SS 3.0, SS 2.0, S, and SR models, this SKRMOD bash guard adds stronger bottom-side protection while keeping the fitment clean for upgraded Eride Pro builds.

Instead of only covering the bottom like a basic skid plate, this design also considers motor clearance, controller space, airflow, and long-term maintenance. It is a practical protection upgrade for riders who ride harder, upgrade their power system, or want a stronger CNC aluminum replacement for the lower protection area.

WHY UPGRADE?

The lower motor and controller area is one of the most exposed parts of an E Ride Pro during trail riding, jumps, hard landings, and muddy off-road conditions. A stronger E Ride Pro bash guard / skid plate helps protect this area from direct hits, scratches, and long-term wear.

The SKRMOD E Ride Pro Bash Guard is designed for riders who want more than basic bottom-side protection. It combines CNC aluminum strength, replaceable skid plate protection, larger upgrade clearance, and a cleaner aggressive look for E Ride Pro and Eride Pro builds.

KEY FEATURES

1. Modular skid plate design reduces maintenance cost

• The bottom skid plate is replaceable, so if the lower plate gets scratched, worn, or damaged, you do not need to replace the entire bash guard.
• Skid Plate Replacement is available separately.

2. Extra clearance for larger motors and controllers

• The inner space is expanded to fit larger aftermarket controllers and upgraded motors.
• 10–15mm extended spacing provides better clearance for bigger motor upgrades.
• Improved open-space design helps with motor airflow and heat dissipation.
• Note: If your bike is an E Ride Pro SR or uses a larger upgraded motor, please choose the "E Ride Pro SR / Larger Motor" option for correct bash guard fitment.

3. Porous wind-tunnel design for better airflow

• The vented design helps air pass through the motor and controller area.
• Better airflow can help reduce heat buildup during aggressive riding.
• Based on electric dirt bike system behavior, overheating can cause reduced power output or power cut protection.

Reference from Surron Light Bee X manual:

• Controller overheating: when operating temperature exceeds 85°C, the vehicle may reduce power and enter EP mode. If overheating continues and exceeds 100°C, power output may be cut off.
• Motor overheating: when operating temperature exceeds 130°C, the vehicle may reduce power and enter EP mode. If overheating continues and exceeds 150°C, power output may be cut off.

4. Heavy-duty protection for aggressive riders

• Engineered for trail, stunt, and hard off-road riding.
• Ultra-thick design helps withstand repeated impacts from rocks, jumps, and bottom-side hits.
• Built to protect the lower motor, controller, and frame area.

5. CNC aircraft-grade aluminum construction

• Made from aviation-grade aluminum alloy.
• CNC-machined for accurate fitment, clean edges, and high product consistency.
• Designed to deliver strength, protection, and a premium upgraded look.

6. Future mudguard adapter support

• Mudguard adapter options are planned for future release.
• Once available, the adapter will be designed for riders who need extra mud protection in wet or heavy off-road conditions.
• The planned adapter is intended to be removable, so riders can keep the setup clean for daily riding and install it when extra mud protection is needed.

COMPATIBILITY

NOTE: For E Ride Pro SR or bikes upgraded with a larger motor, choose the "E Ride Pro SR / Larger Motor" option.

Compatible models

- E Ride Pro S
- E Ride Pro SS 2.0
- E Ride Pro SS 3.0
- E Ride Pro SR

Compatible upgraded motors

- TORP TM25 / TM40 Motor
- EBMX XLB-60 CORE Motor
- EBMX XLB-60 RACE Motor

Compatible controllers

- E Ride Pro SR Controller
- E Ride Pro SS 2.0 / SS 3.0 Controller
- EBMX X-9000 X7 Controller
- TORP TC500 Controller

• Please watch the E Ride Pro controller fitment video before ordering if you are using an upgraded controller.
• The SKRMOD E Ride Pro Skid Plate Bash Guard is designed for strong compatibility with many commercially available upgraded motors and controllers.

BOX INCLUDED

Option “Bash Guard”:

1 x Bash Guard
1 x Screw set
1 x 3D printed adapter, only for stock controller setup

Option “Skid Plate Replacement”:

1 set Skid Plate Replacement, including one large plate and one small plate

INSTALLATION

Before you start:
Make sure to watch the installation video and read the guide first. Need help? Just DM us.

⚠️ Important installation note:
You must fully pre-assemble the bash guard off the bike first. Attaching each part one by one directly on the bike can cause alignment issues, and the mounting holes may not line up correctly.

1. Watch the E Ride Pro Bash Guard installation video
2. View the E Ride Pro skid plate installation key reminder

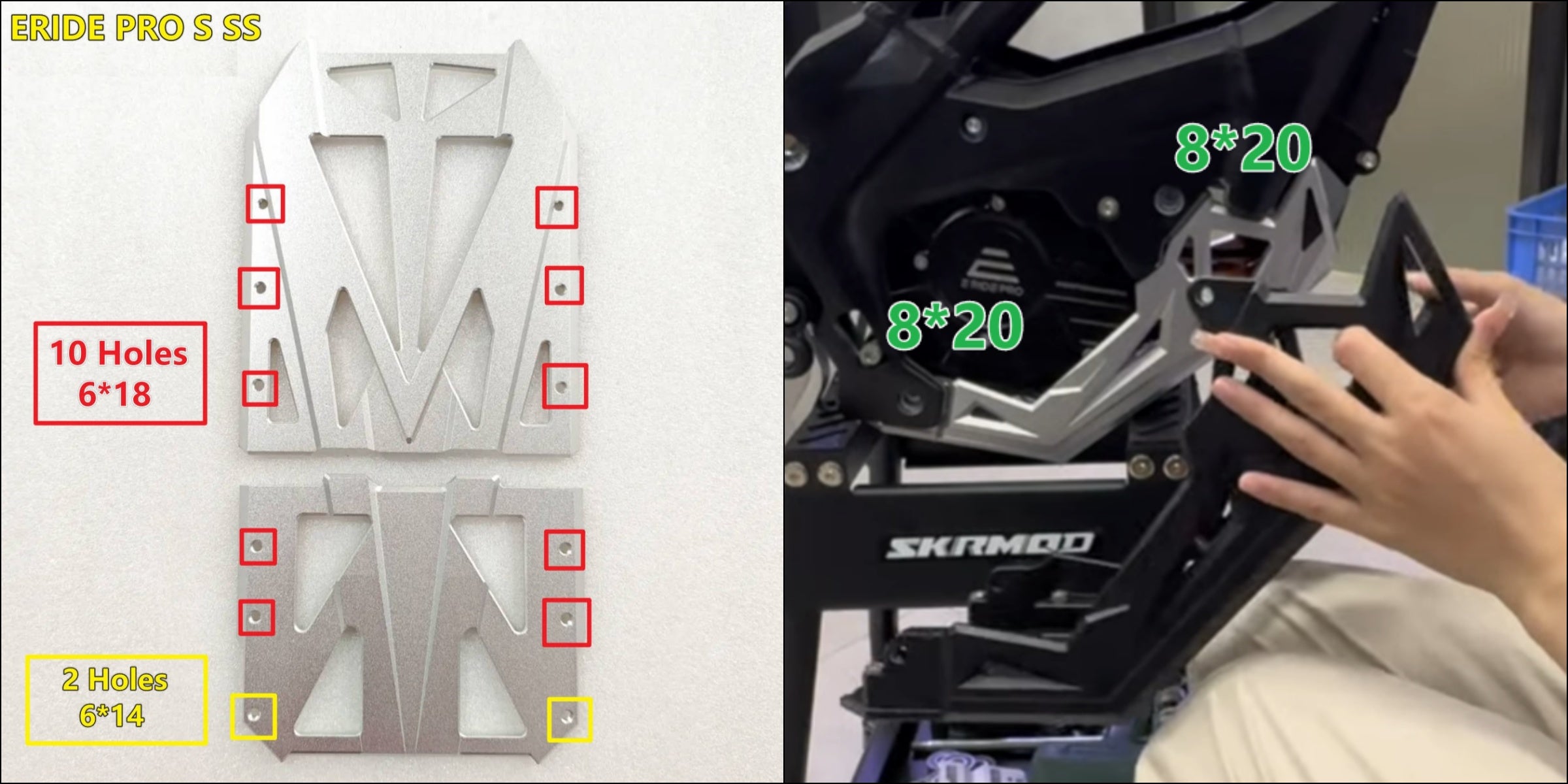

3. Screw size and position:





⚠️ NOTE:

1. Bar-shaped adapter

• If your controller is the factory controller, it needs to be paired with the included bar-shaped adapter.
• If your bike has been upgraded with a larger controller, the adapter may not be needed. Please install according to your actual setup.

2. Pre-assemble before installing on the bike

• Because this bash guard reserves extra space for larger motors and controllers, do not install the components one by one directly onto the vehicle.
• Installing each part separately on the bike may cause the mounting holes to misalign.

3. Align all screws before tightening

• During assembly, lightly start all screws first until every mounting hole is aligned.
• After all screws are correctly positioned, tighten them evenly.
• Tightening one screw completely too early may cause the other screw holes to shift out of alignment.
