Skrmod Surron Super Upgraded Linkage & Triangle for Surron Light Bee X LBX Mods Parts & Accessories

COMPATIBILITY

- Surron Light Bee X LBX

BIKE MODEL

• Surron Light Bee X LBX
• If you need E Ride Pro S SS 2.0 3.0 SR, please click:
  🛒 E Ride Pro S SS 2.0 3.0 SR Linkage & Triangle

BEARING KIT

• When purchasing the Linkage & Triangle, it will be pre - assembled before shipping. This option is provided for some customers with specific needs.
• If you have relevant experience and tools, you can replace it yourself.
  If you're not confident, it is recommended to replace the entire new linkage assembly to avoid operational risks.
• The single option of the Bearing Kit only includes one set of bearing kits, aiming to reduce maintenance costs. Please select the quantity according to the actual damage situation.
• One linkage requires two sets of bearing kits. If you want to replace the whole set, you need to adjust the quantity to 2.


LINKAGE MAINTENANCE

• It is not recommended to pry out the bearings for maintenance as it can easily damage the internal components. Do not disassemble them without authorization. Otherwise, after-sales service will not be provided.
• Daily maintenance: Regularly use a specialized syringe to inject lubricating oil into the interior through the two hidden grease injection holes we designed, thus extending the service life.（Oil filling tools are for sale.）

🌟UPGRADE

UPGRADES AROUND: Force Structural, Functional, Bearing Quality And Structural, Stock / Super Moto Versatility, and Extension of Service Life.

✅ Structure and force: We have thickened the key force-bearing positions to prevent the bearings from being crushed, and at the same time carried out a structural upgrade design. The force is more than three times that of the original factory and can withstand a tensile force of 3 tons.
✅ Non-slopping Composite Needle Roller Bushing: Have you ever encountered a situation where you need to perform maintenance every 300 - 500 kilometers, and then find that there is sand, water, or even rust inside, causing wear to the tail fork and the triangular bracket? -- This is caused by the structural problem of the middle bushing that slides left and right. We have upgraded to address this issue and adopted a composite needle roller bushing to prevent it from moving left and right.
✅ Oil Injection Holes:  We have added two hidden oil injection holes to facilitate the regular maintenance of riders, without the need for cumbersome disassembly and prolong the service life.
✅ Stock / Super Moto Versatility Adjustable: After replacing the tires or the front fork, the backward tilt angle of the vehicle will change, making it prone to lifting the front end when climbing slopes or having a too-low chassis that easily hits obstacles. We have carried out an upgrade to address this problem. We adjusted the structure of the triangular connecting rod to make it universal whether it is the original factory setting or after modification. The 304 steel adjustable bushings on the triangle side are used for the stock position and 25mm / 0.75 inch rising by flipping the bushing.
✅ Bearing quality and quantity: The number of bearings has been upgraded from two to three, the force coefficient is improved, and the use is more stable. At the same time, Skrmod customization bearings are used!

SHIPPING

- Products with tight inventory:

• • red（LAST ONE）
      * International orders: available in stock, shipped directly from China
      * US order: It needs to be transferred from the warehouse in China.

- US region:

• • Products in stock are generally shipped from the US warehouse within 1 - 3 working days.
  • If it is a product on pre-sale, the inventory of the Chinese warehouse needs to be used. After transporting it to the US warehouse, it will be sent to you. It is estimated to take 5 - 7 working days (the time will be delayed if there is a customs inspection).

- Other regions:

• • Except in cases of special instructions, there is stock available. Orders will be shipped from China the next day after being placed.
  • Ship directly from China, most regions use UPS / DPD /DHL...It is generally shipped within 1 to 2 working days.
  • The tracking number will take a few days to be available. It takes time to declare information and for the other party to review.
  • It has been opened in many countries, if you encounter the problem of address delivery, please contact us! IG/FB @SkrmodOfficial

INSTALLATION

🌟 Key upgrade internal disassembly video : VIDEO

NOTE: We are very sorry that the logo on some goods may be pasted in the wrong direction. Please pay attention to the installation direction of the triangle. Otherwise, it will lead to fracture. Please refer to the picture for correct installation. If you want to display the logo, you can use the attached crystal label sticker to DIY/modify by yourself.

BOX INCLUDED

Option “Linkage & Triangle”：
1 x Linkage
1 x Triangle

Option “Mini Grease Gun”：
1 x Mini Grease Gun

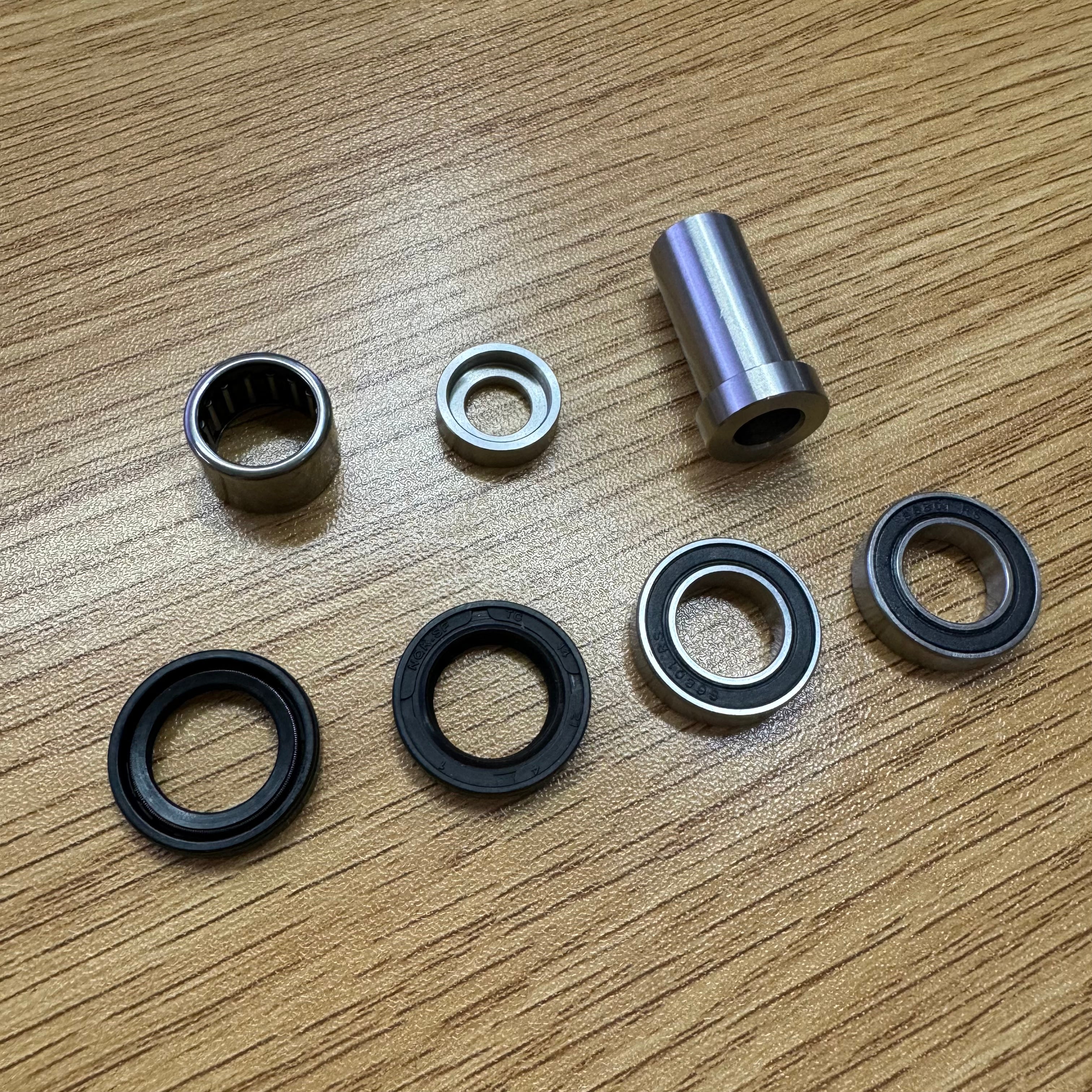

Option “Bearing Kit”：(as pic)
1 x Needle roller
2 x Stainless - steel components
2 x Sealing rubber rings
2 x Bearings

NOTE:
- The screws need to be original screws.
- The accessories in the explosion display diagram are assembled inside in advance with professional instruments. Do not disassemble them without authorization. Otherwise, after-sales service will not be provided.
